Pressure Transmitter XY-PTMT300

Pressure Transmitter XY-PTMT300 Brief Introduction

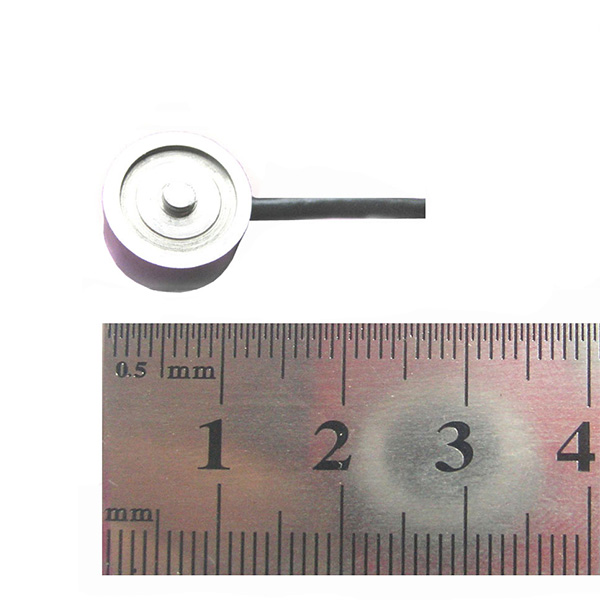

XY-PTMT300 Thin Precision Pressure Transmitter has minimum diameter 10mm and 5mm thickness. Special design and precision machining technology make them with excellent dynamic and static qualities, stainless steel shell and laser-welded construction, IP65 or IP67 Ingress protection; the ultrathin and small size can be used to specific environments if the work condition is limited about test point size, or need to keep flow distribution, Xuyan offer customized type to against harsh rugged work condition by customer special requirements.

The Small size mounted type Precision Pressure Transmitter has excellent performance such as high precision, fast response, small size, light-weight, stable and reliable, strong overload capacity; designed for most medium in industry, such as air, oil, water and others fluid; the Micro pressure transmitter mainly is applied in the followed situations: aerodynamics, aircraft and engine experiment, wind tunnel experiment, hydromechanics experiment, hydraulic modeling experiment, biomedicine experiment, chemical explosive and nuclear explosive blast experiment; Output 4～20mA or 0～5VDC standard electrical signal through regulation device; Measurement Range: Air pressure 0-20KPa, 0-200KPa; Others medium 0-1MPa…10MPa…50MPa…100MPa. With thoughtful specialized electric circuit design, it's easy to install in microprocessor intelligent control system; calibrated by ultra-high precision absolute pressure calibration equipment, accuracy 0.2%; 0.5%; temperature stability index can be increased to 0.02%/FS/℃ by sensor temperature self-compensation and specialized circuit debugging.

Pressure Transmitter XY-PTMT300 Specification

Model	XY-PTMT
	100	200	300
Gauge Pressure Range	0-5KPa…100KPa…1000MPa	0-5KPa…100KPa…8000MPa	Air pressure 0-20KPa, 0-200KPa
			Others 0-1MPa…10MPa…50MPa…100MPa
Pressure Type	Gauge Pressure Test
Measurement Medium	Gas or Liquid with Compatibility of  SS 304 ,SS316 or Silicon
Accuracy	0.2%FS   0.5%FS additional conditioning circuit
Long-Term Stability/Year	±0.2%FS/Year
Zero Temperature Trift	Typical: ±0.02%FS/℃;  Maximum ±0.05%FS/℃
Sensitivity Temperature Drift	Typical: 0.02% FS / ℃;The biggest: 0.05% FS / ℃
Overload Pressure	200%
Operation Temperature	-20~85℃
Compensation Temperature	-20 ～ 80℃
Environmental Temperature	-40 ～ 120℃
Power Supply	5VDC
Signal Output	mV;  after conditioning 4～20mA, 0-5V after
Load Resistance	≤(U-6.5)/0.02A Ω
IP Protection Class	IP65; IP67

Performance Parameter
Performance Parameter	A	B	C	D
Non-linear/±%FS	1.00	0.50	0.20	0.1
Non-redundant, hysteria /±%FS	0.20	0.15	0.10	0.04
Zero temperature coefficient/X10-4/℃.FS	5.00	3.00	2.00	1.00
Sensitivity temperature coefficient/X10-4/oC.FS	5.00	3.00	2.00	1.00
Zero time drift/%FS/8h	0.20	0.15	0.10	0.10
Accuracy%FS	1.00	0.50	0.25	0.15

Mode	Size
XY-PTMT100	Φ3mm-Φ8mm
XY-PTMT200	M5*1-M10*1
XY-PTMT300	Φ10*5mm-Φ30*10mm

More details for XY-PTMT300, please Contact Us.
