Digital Pressure Gauge XY-PG280P

4-Digits LCD; Meets 3-A Sanitary Standards; Record For Extreme Value; Φ80mm

SS304 shell, Standard Accuracy 0.2%FS&0.4%FS; Designed for Food, Pharmaceutical, Cosmetic and Beverage Industries, to keep work stations cleaning and bactericidal maintenance

Typical Feature

304 stainless steel frosted shell, dial diameter 80 mm
Clamp flat diaphragm meets 3-A Sanitary Standards
With 4-digits LCD Display.
Accuracy level: Pressure 0.2% and 0.4%
Wield Absolute Pressure, Gauge Pressure and Vacuum Pressure
Powered by 2 pcs of AA Battery power, standby time 12 Months
Alarm for low power supply, Record for Maximum/Minimum.
Multi pressure multiunit switching (PSI/BAR/KPa/Kgf/cm²/MPa）
One key reset to Zero
Strong media compatibility, water, oil, gas and other medium without corrosion in stainless steel

Contact

Brief Introduction
Suggested Applications
Specification
Document
Leave us Message

Digital Pressure Gauge XY-PG280P Brief Introduction

XY-PG280P is a high precision Sanitary Digital Pressure Gauge, designed for Food, Pharmaceutical, Cosmetic and Beverage Industries, to keep work stations cleaning and bactericidal maintenance. which is built-in high accuracy pressure sensor, it displays real-time pressure at short response time, the typical characteristics are high accuracy and excellent long-term stability.

The digital pressure gauge has LCD display with 4-Digits. There are 4 buttons on the front panel to control Reset, backlit display, Power On/Off, Unit converting, low voltage alarm and record Maximum. It is easy to install in Pipeline, Isolation tank or others connects device, easy to set up operating parameter. Working condition is -5-40 ℃, it should be cold once working condition temperature more than 40℃, -20~150℃ are customized.

It has 304 stainless steel shell and joint, can be used in measuring gas, liquid, oil and others medium without corrosion for stainless steel, at the same time its shock resistance is very good.

XY-PG280P Sanitary Digital Pressure Gauge is powered by 2 batteries (AA), with low power consumption and long duration.

There are three pressure measurement types: Gauge Pressure, Vacuum Pressure and Absolute Pressure; Machinal joint include Thread, Flush Diaphragm, Clamp, Flange, Radiator and Differential Two-way Fitting.

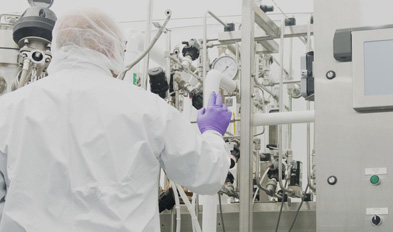

Suggested Applications

Digital Pressure Gauge XY-PG280P Specification

Model	XY-PG280P
General Pressure Range	0~0.2…0.6…1…2.5…10…25…40…60…100…160MPa
Micro-pressure Range	(0~5…10…25…40…60…100) KPa
Composite range	(-0.1~0…0.1…0.25…0.4…0.6…1…1.6…2.5) MPa
Composite range	(-10~10; -25~25; -40~40; -60~60; -100~100) KPa
Pressure Type	Gauge Pressure Test, Vacuum Pressure Test
Dimension	Φ80mm; Thickness 48mm
Overload Capacity	150% (>10MPa); 200% (≤10MPa)
Measurement Medium	Gas or Liquid with Compatibility of SS 316
Accuracy Level	0.2%FS ;0.4%FS
Long-Term Stability/Year	Typical: ±0.2% FS
Operation Temperature	-20～70℃; -20_150℃ are customized
Compensation Temperature	0～60℃
Working Humidity	<85%
Display	4 digits LCD, white backlit display
Alarm Point Set	High & Low alarm points can be set within range
Power Supply	Battery 3V; 24VDC, 220VAC are optional
